SPPC-PWL-LD-E-GN-C-300-OS

VS390279 - Please contact Radiall for additional information

This part is RoHS Compliant.

Datasheets Download
Datasheets
3D.STEP
Distributor Inventory Find a Distributor

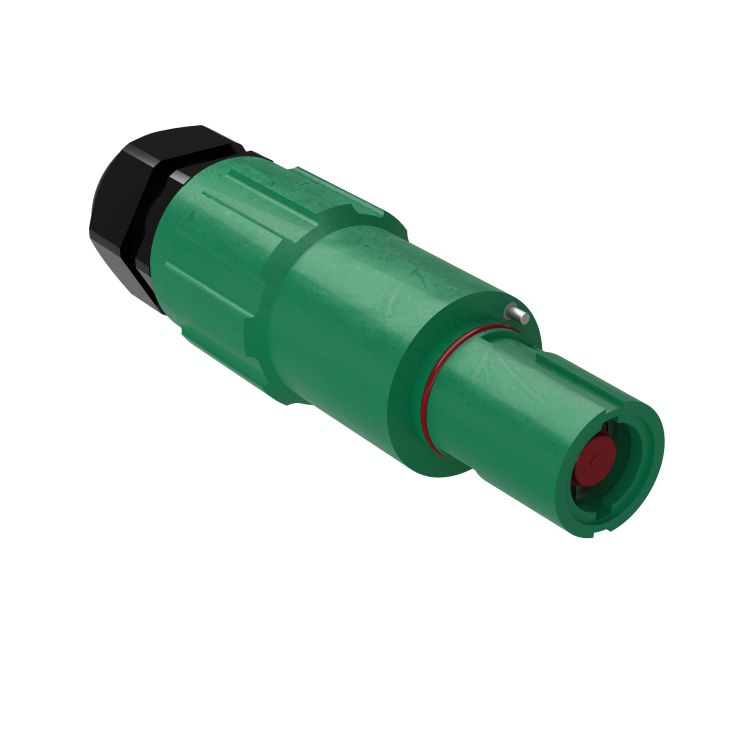

SPPC-PWL-LD-E-GN-C-300-OS

VS390279

Product Line SPPC

Series SPPC-PWL (Powerlock compatible)

Product Type Single Pole Power Connectors

Number of Contacts 1

Connector Type Line drain

External Cable Diameter 22mm-32mm

Contact Termination Crimp contacts - 300mm2

Voltage Rating 1000 V

Current Rating 750 A

Color Green - Earth

Certification VDE

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500

RoHS Yes
