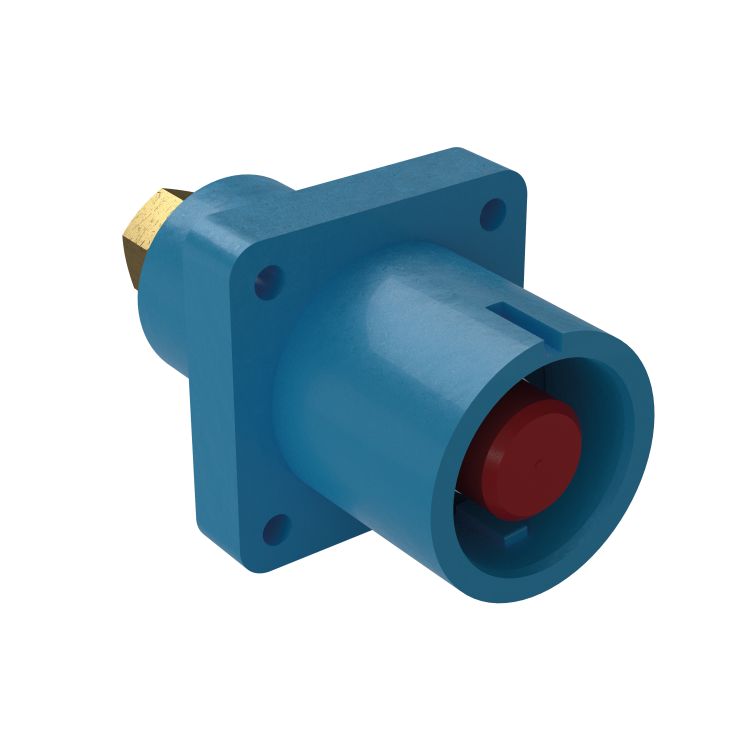

SPPC-PWL-2.0-PS-N-BU-M12-T5
VS392519 - Please contact Radiall for additional information
This part is RoHS Compliant.
VS392519
Product Line SPPC
Series SPPC-PWL-2.0 (Powerlock compatible with integrated secondary locking)
Product Type Single Pole Power Connectors
Number of Contacts 1
Connector Type Panel source
Contact Termination M12 Threaded post
Voltage Rating 1000 V
Current Rating 500 A
Color Blue - Neutral
Certification UL
Sealing Protection IP66/67
Temperature Range -30°/+125°C
Mating Cycles 500
RoHS Yes
