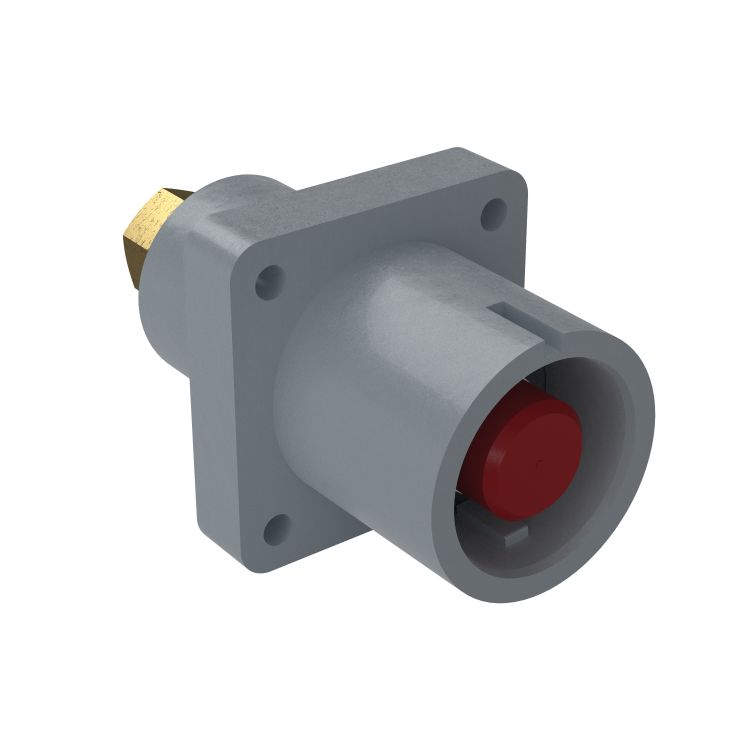

SPPC-PWL-2.0-PS-L3-GY-M12-T5

VS392518 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
SPPC-PWL-2.0-PS-L3-GY-M12-T5

VS392518

Application Power supply

Series SPPC-PWL-2.0

Connector Type Single Pole Power Connectors

Number of Contacts 1

Drain Panel source

Contact Termination M12 Threaded post for conductor up to 300mm2

Voltage Rating 1000 V

Current Rating 500 A

Color Grey - Phase L3

Certification UL

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500
