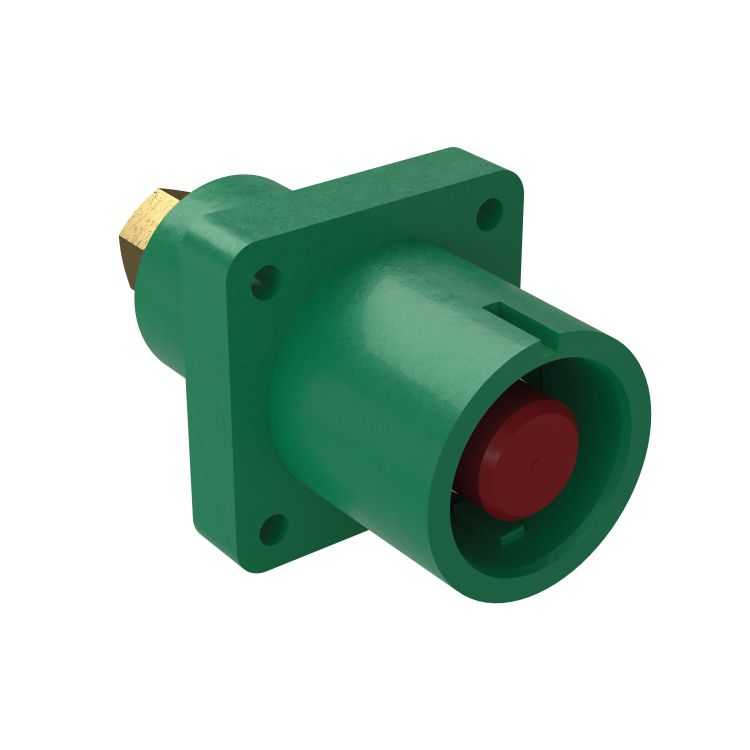

SPPC-PWL-2.0-PS-E-GN-TH5

VS392530 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
SPPC-PWL-2.0-PS-E-GN-TH5

VS392530

Application Power supply

Series SPPC-PWL-2.0

Connector Type Single Pole Power Connectors

Number of Contacts 1

Drain Panel source

Contact Termination Threaded Hole

Voltage Rating 1000 V

Current Rating 500 A

Color Green - Earth

Certification UL

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500
