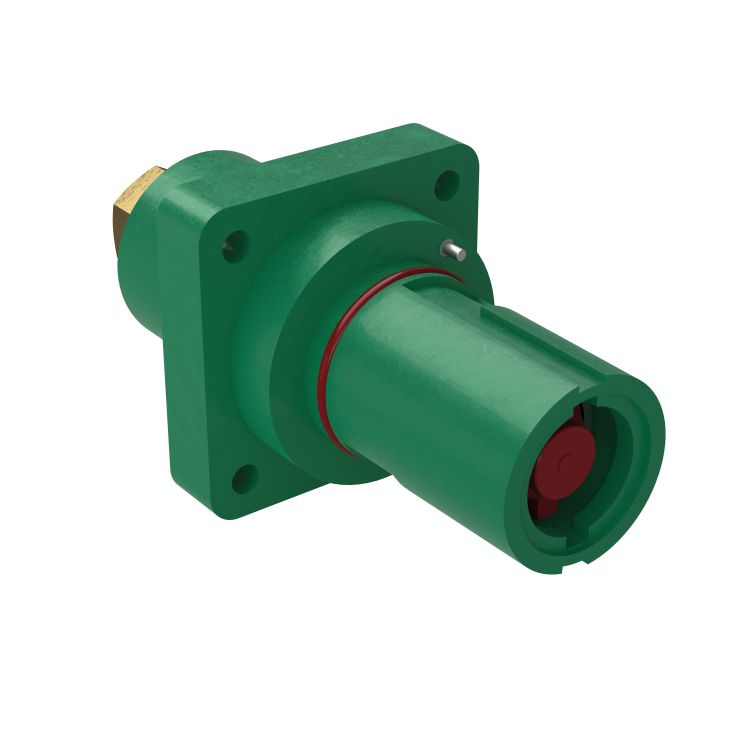

SPPC-PWL-2.0-PD-E-GN-M12-T5

VS392515 - Please contact Radiall for additional information

This part is RoHS Compliant.

Datasheets Download
Datasheets
Distributor Inventory Find a Distributor
SPPC-PWL-2.0-PD-E-GN-M12-T5

VS392515

Product Line SPPC

Series SPPC-PWL-2.0 (Powerlock compatible with integrated secondary locking)

Product Type Single Pole Power Connectors

Number of Contacts 1

Connector Type Panel drain

Contact Termination M12 Threaded post

Voltage Rating 1000 V

Current Rating 500 A

Color Green - Earth

Certification UL

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500

RoHS Yes
