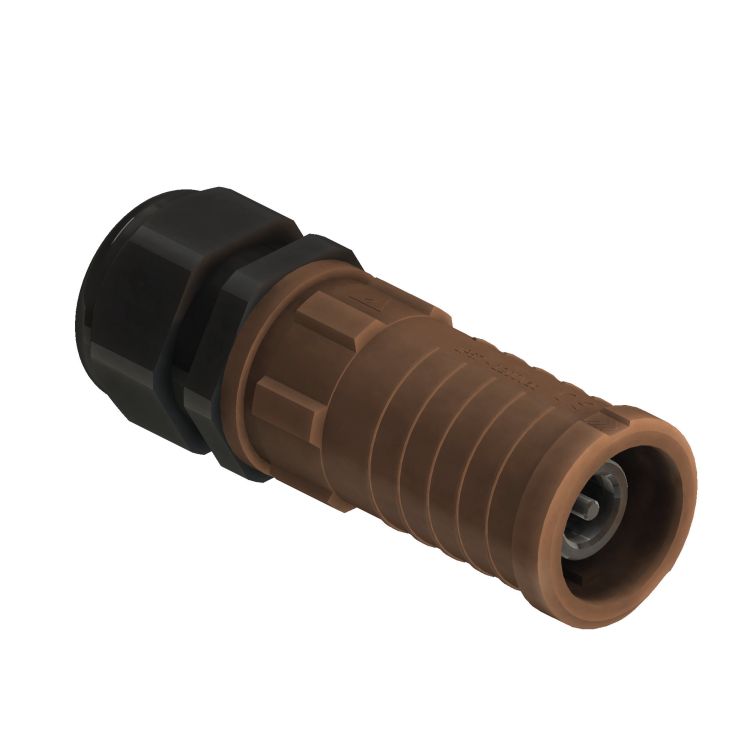

SPPC-HK-LS-L1-BR-S-70-M

VS440075 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
SPPC-HK-LS-L1-BR-S-70-M

VS440075

Application Power supply

Series SPPC-HK

Connector Type Compact Single Pole Power Connectors

Number of Contacts 1

Drain Cable/Line source

External Cable Diameter 19mm-28mm

Contact Termination Screws terminal for conductor up to 70mm2

Voltage Rating 1200 V

Current Rating 250 A

Color Brown - Phase L1

Sealing Protection IP67

Temperature Range -30°/+120°C

Mating Cycles 500
