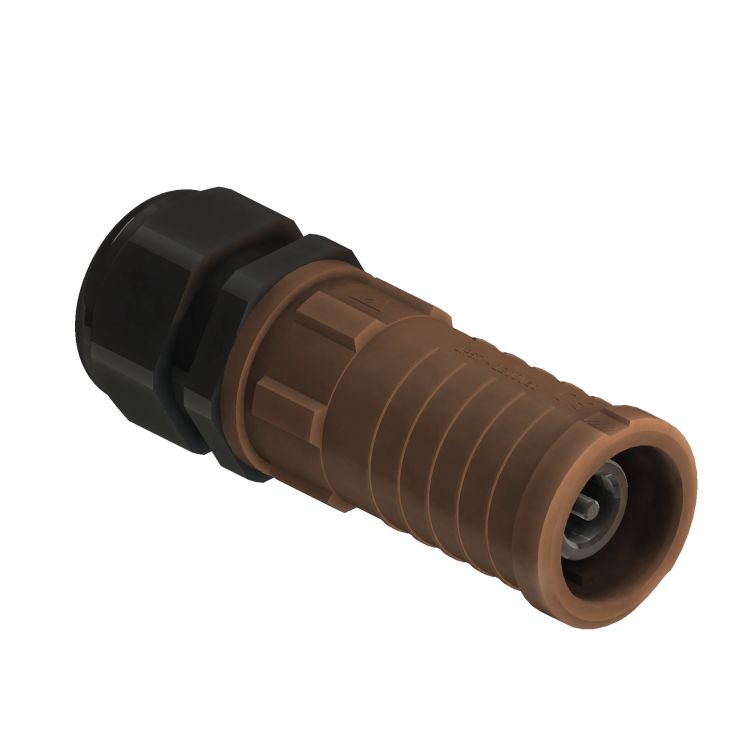

SPPC-HK-LS-L1-BR-C-120-OS

VS440056 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
SPPC-HK-LS-L1-BR-C-120-OS

VS440056

Application Power supply

Series SPPC-HK

Connector Type Compact Single Pole Power Connectors

Number of Contacts 1

Drain Cable/Line source

External Cable Diameter 22mm-32mm

Contact Termination Crimp contacts 95mm2 - 120mm2

Voltage Rating 1200 V

Current Rating 400 A

Color Brown - Phase L1

Sealing Protection IP67

Temperature Range -30°/+120°C

Mating Cycles 500
