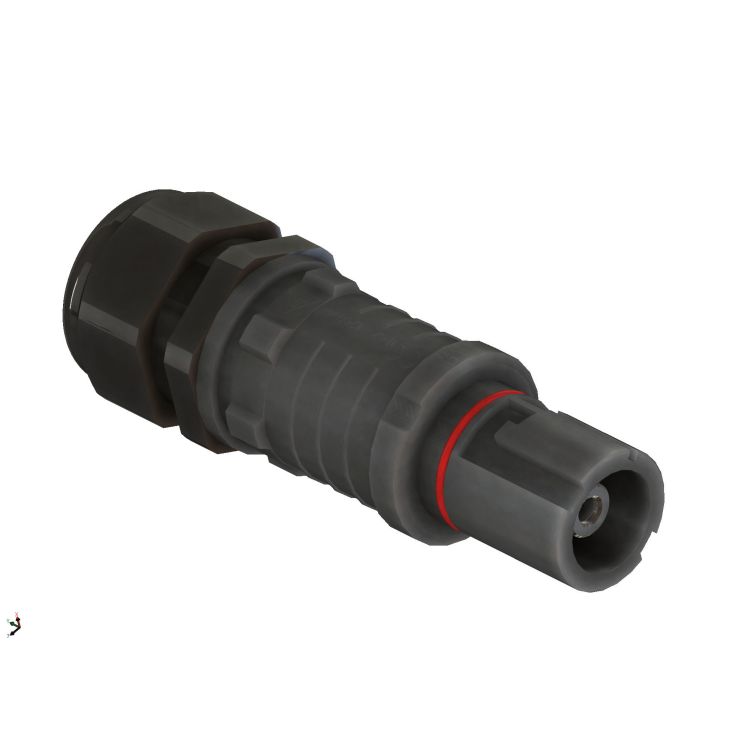

SPPC-HK-LD-L2-BK-S-70-M
VS440054 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
VS440054
Application Power supply
Series SPPC-HK
Connector Type Compact Single Pole Power Connectors
Number of Contacts 1
Drain Cable/Line drain
External Cable Diameter 19mm-28mm
Contact Termination Screws terminal for conductor up to 70mm2
Voltage Rating 1200 V
Current Rating 250 A
Color Black - Phase L2
Sealing Protection IP67
Temperature Range -30°/+120°C
Mating Cycles 500
