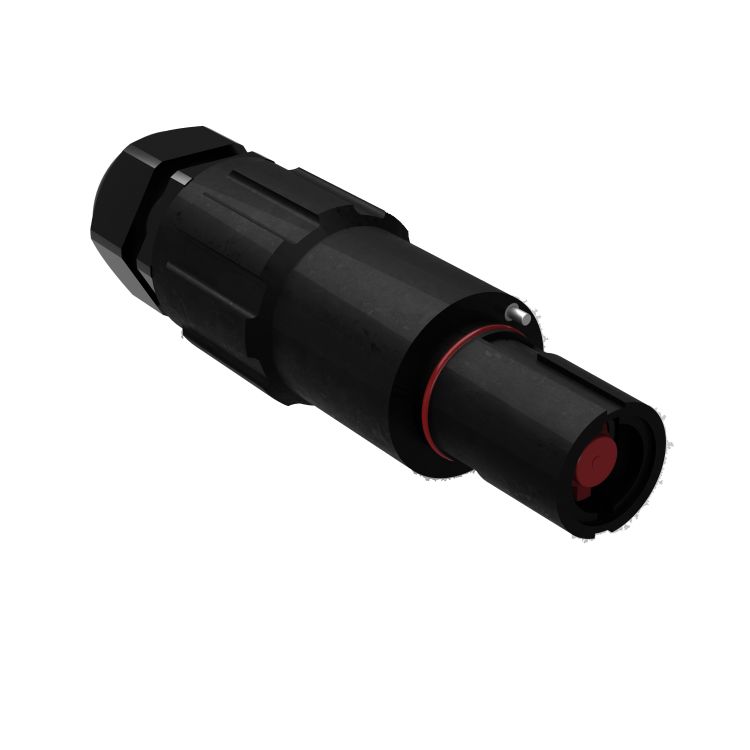

SPPC-PWL-LD-L2-BK-C-240-OS

VS390106 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
Datasheets
3D.STEP
SPPC-PWL-LD-L2-BK-C-240-OS

VS390106

Application Power supply

Series SPPC-PWL

Connector Type Single Pole Power Connectors

Number of Contacts 1

Drain Cable/Line drain

External Cable Diameter 22mm-32mm

Contact Termination Crimp contacts 240mm2

Voltage Rating 1000 V

Current Rating 750 A

Color Black - Phase L2

Certification VDE

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500
