SPPC-PWL-2.0-LS-L1-BR-S-150-M

VS392506 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets

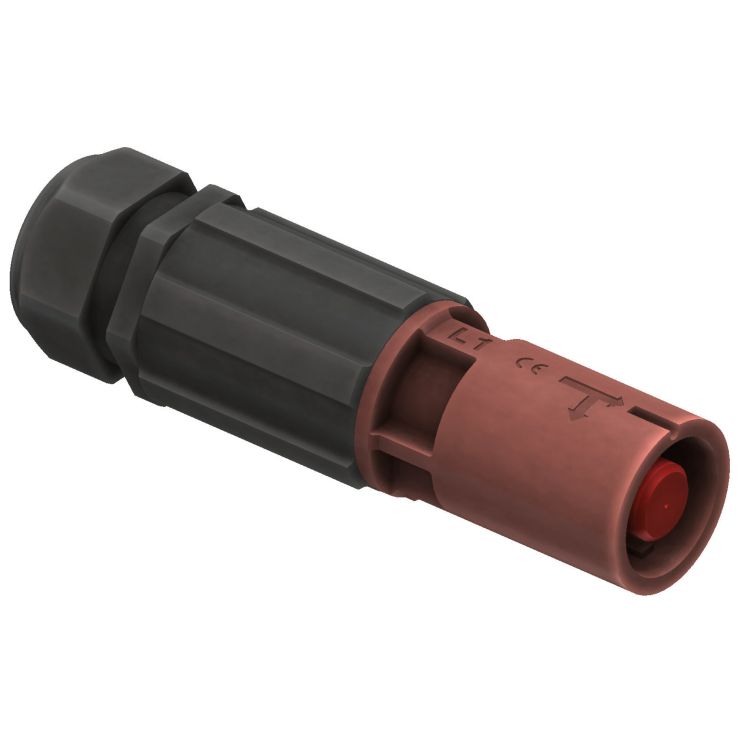

SPPC-PWL-2.0-LS-L1-BR-S-150-M

VS392506

Application Power supply

Series SPPC-PWL-2.0

Connector Type Single Pole Power Connectors

Number of Contacts 1

Drain Cable/Line source

External Cable Diameter 19mm-28mm

Contact Termination Screws terminal for conductor up to 150mm2

Voltage Rating 1000 V

Current Rating 500 A

Color Brown - Phase L1

Certification UL, VDE

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500
