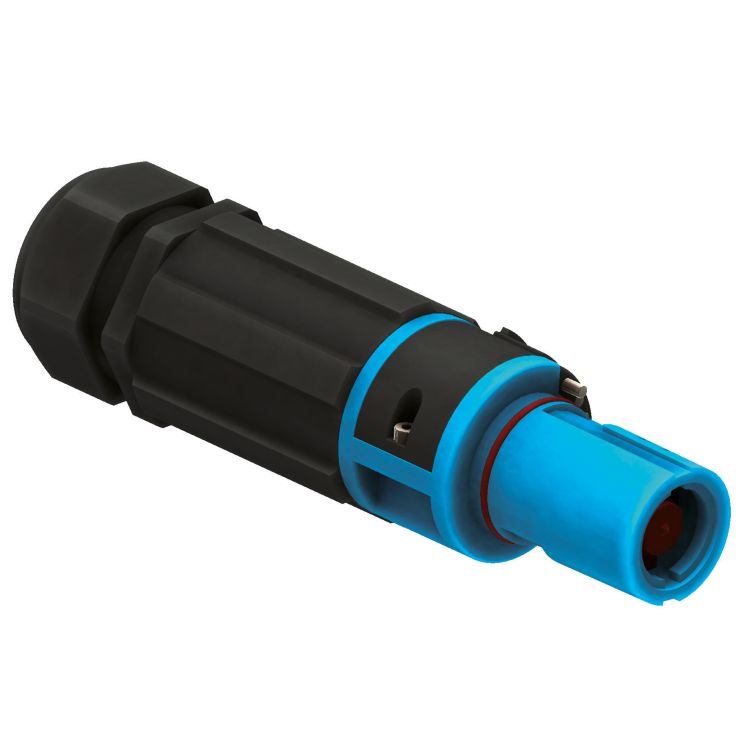

SPPC-PWL-2.0-LD-N-BU-S-150-M

VS392504 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
SPPC-PWL-2.0-LD-N-BU-S-150-M

VS392504

Application Power supply

Series SPPC-PWL-2.0

Connector Type Single Pole Power Connectors

Number of Contacts 1

Drain Cable/Line drain

External Cable Diameter 19mm-28mm

Contact Termination Screws terminal for conductor up to 150mm2

Voltage Rating 1000 V

Current Rating 500 A

Color Blue - Neutral

Certification UL, VDE

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500
