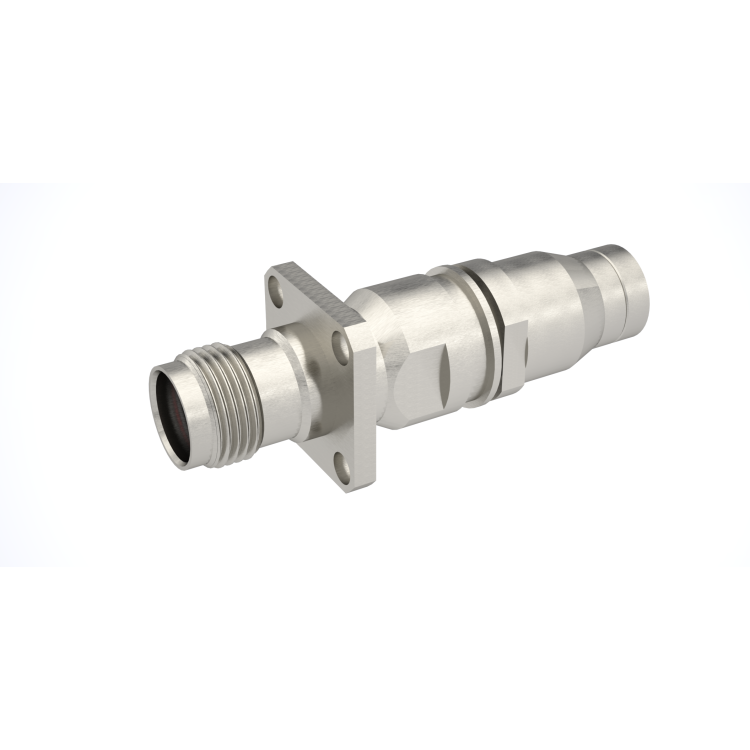

TNC / STRAIGHT SQUARE FLANGE JACK CRIMP TYPE CABLE 8.07/50

R143293190

Brand: RADIALL

Product Type: Connectors

Interface I: TNC

Model: CABLE CONNECTOR

Max Frequency (GHz): 6

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: ASNE0406-WD, ASNE0692-WN, EN4604-007WN, EN4604-008-WD

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 8/50 D

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
TNC / STRAIGHT SQUARE FLANGE JACK CRIMP TYPE CABLE 8.07/50

R143293190 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
