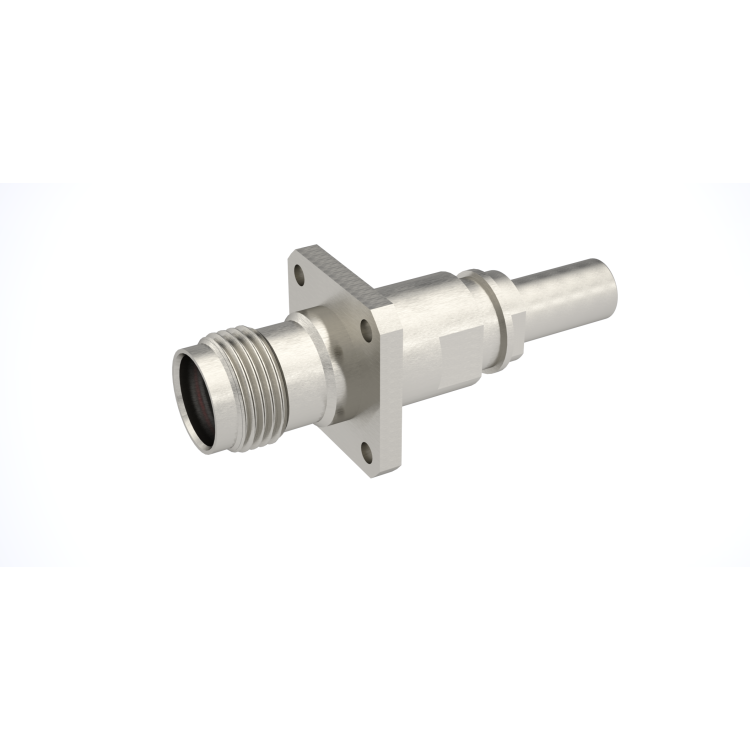

TNC / STRAIGHT SQUARE FLANGE JACK CRIMP TYPE - CABLE 5/50 D

R143297700

Brand: RADIALL

Product Type: Connectors

Interface I: TNC

Model: CABLE CONNECTOR

Max Frequency (GHz): 1.5

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: XF

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 5/50 D

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: PASSIVATED

OR
TNC / STRAIGHT SQUARE FLANGE JACK CRIMP TYPE - CABLE 5/50 D

R143297700 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Datasheets
3D.IGS
3D.STEP
