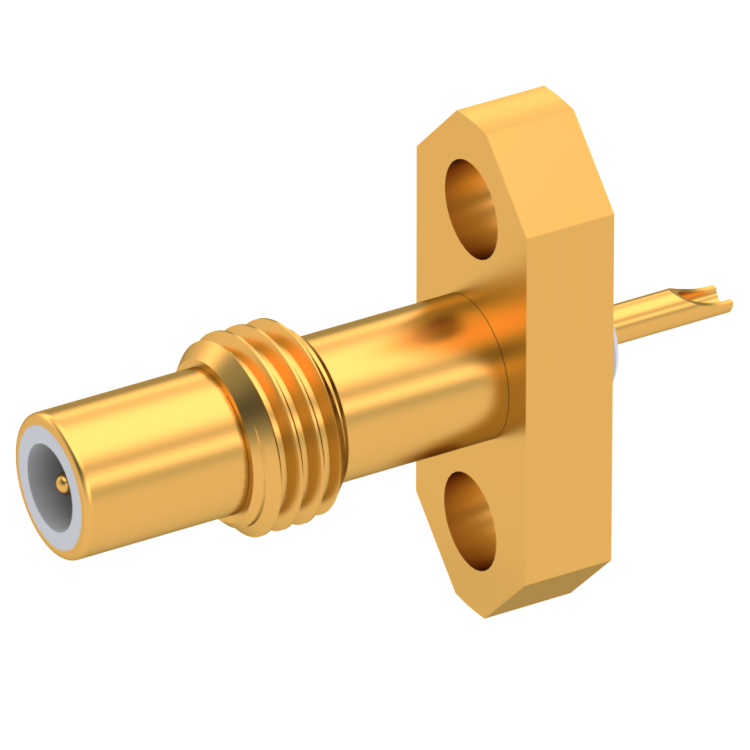

SSMC / STRAIGHT JACK MALE GOLD STAINLESS STEEL BODY

7100-1513-000

Brand: AEP

Product Type: Connectors

Interface I: SSMC

Model: PANEL RECEPTACLE

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 2 HOLE FLANGE

Connector Type: JACK

Gender 1: MALE

Mating System: SCREW-ON

Center Contact Termination: SOLDER POT

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
SSMC / STRAIGHT JACK MALE GOLD STAINLESS STEEL BODY

7100-1513-000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
