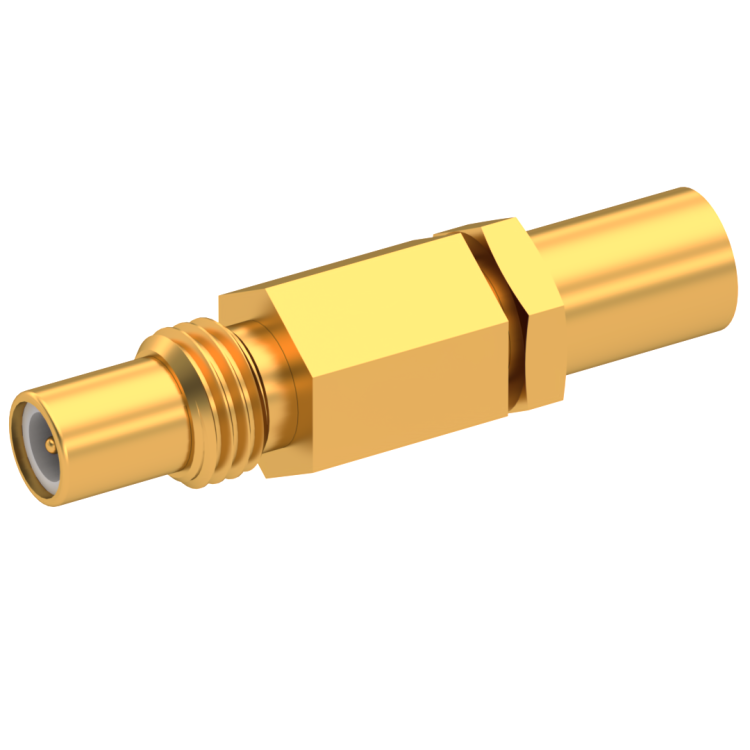

SSMC / STRAIGHT JACK MALE CRIMP TYPE FOR 2/50 S CABLE GOLD

7101-1571-002

Brand: AEP

Product Type: Connectors

Interface I: SSMC

Model: CABLE CONNECTOR

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: JACK

Gender 1: MALE

Cable Standard: M17/169|M17/93|RG 178|RG 196

Cable Attachment: CRIMP TYPE

Cable Groups: 2/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
SSMC / STRAIGHT JACK MALE CRIMP TYPE FOR 2/50 S CABLE GOLD

7101-1571-002 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
