SSMC / RIGHT ANGLE PLUG FEMALE SOLDER TYPE FOR .085''/50 SR GOLD

7105-1561-010 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions

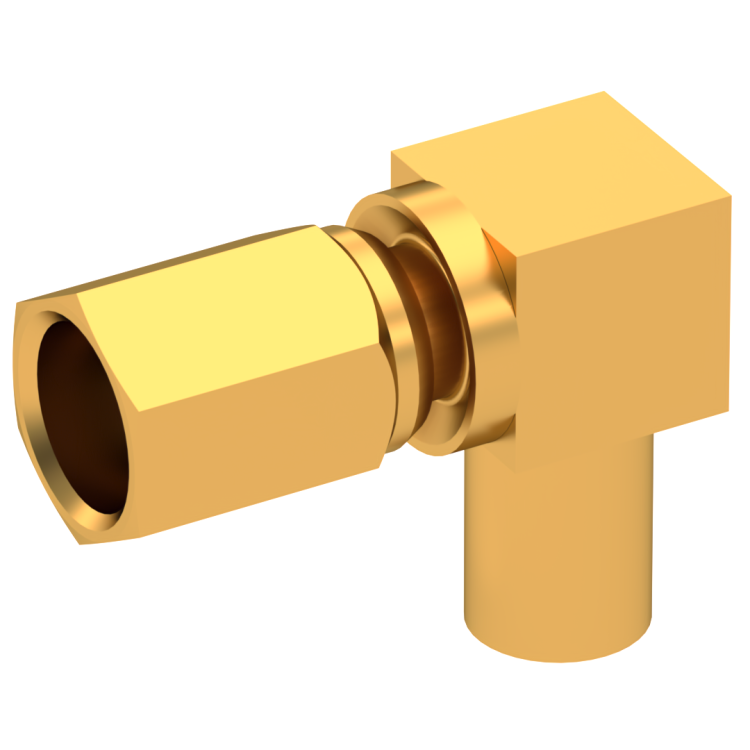

SSMC / RIGHT ANGLE PLUG FEMALE SOLDER TYPE FOR .085''/50 SR GOLD

7105-1561-010

Brand AEP

Product Type Connectors

Interface I SSMC

Model CABLE CONNECTOR

Max Frequency (GHz) 12.4

Impedance (Ohm) 50

Geometry RIGHT ANGLE

Connector Type PLUG

Gender 1 FEMALE

Cable Standard RG 405|M17/133

Cable Attachment SOLDER TYPE

Cable Groups .085''/50 SR

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
