SSMC / RIGHT ANGLE JACK MALE SOLDER TYPE FOR .047''/50 SR GOLD

7106-1561-011 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions

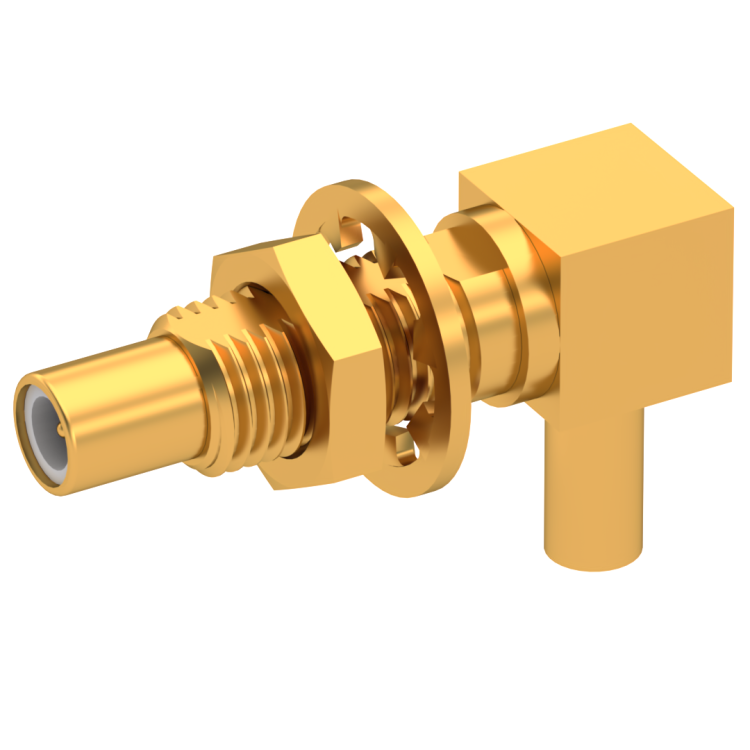

SSMC / RIGHT ANGLE JACK MALE SOLDER TYPE FOR .047''/50 SR GOLD

7106-1561-011

Brand AEP

Product Type Connectors

Interface I SSMC

Model CABLE CONNECTOR

Max Frequency (GHz) 12.4

Impedance (Ohm) 50

Geometry RIGHT ANGLE

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 MALE

Cable Standard UT 47|C17/151-01|M17/151

Cable Attachment SOLDER TYPE

Cable Groups .047''/50 SR

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
