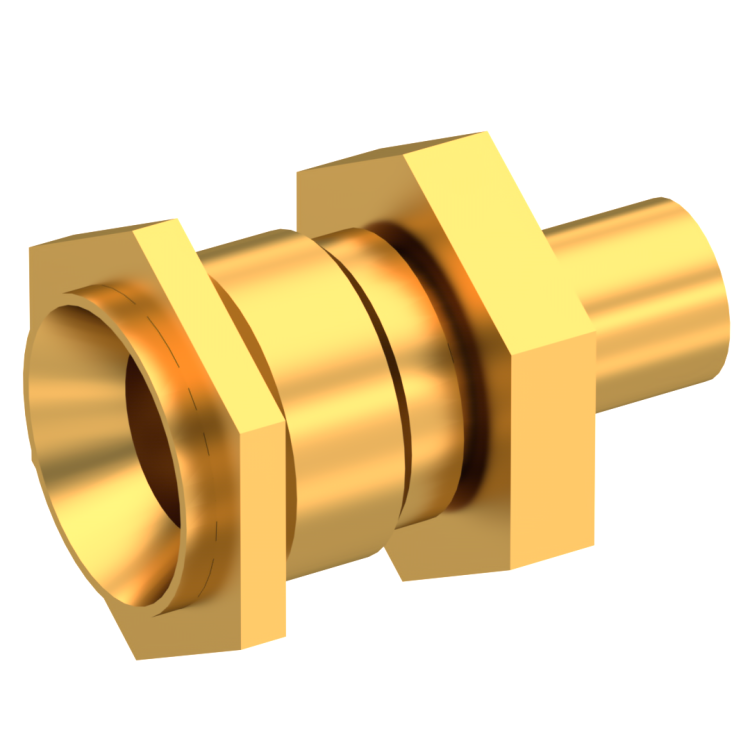

SMP / STRAIGHT BULKHEAD JACK MALE SOLDER TYPE FOR .085''/50 SR CABLE GOLD SMOOTH BORE

7502-1582-110 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Click here to check for distribution inventory

Datasheets Download
Datasheets
SMP / STRAIGHT BULKHEAD JACK MALE SOLDER TYPE FOR .085''/50 SR CABLE GOLD SMOOTH BORE

7502-1582-110

Brand AEP

Product Type Connectors

Interface I SMP

Model CABLE CONNECTOR

Max Frequency (GHz) 40

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 MALE

Cable Standard RG 405|M17/133

Cable Attachment SOLDER TYPE

Cable Groups .085''/50 SR

Mating System SNAP-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
