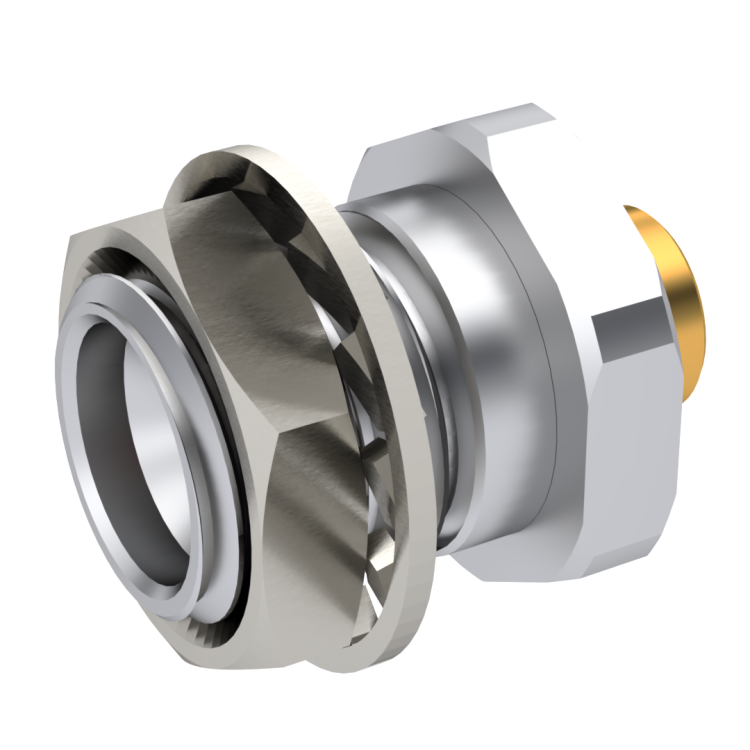

SMP / BULKHEAD STRAIGHT MALE JACK FULL DETENT SOLDER TYPE CABLE .085
R222302002 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R222302002
Brand RADIALL
Product Type Connectors
Interface I SMP
Model CABLE CONNECTOR
Max Frequency (GHz) 40
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 MALE
Cable Standard KS 1, RG 405
Cable Attachment SOLDER TYPE
Cable Groups .085''/50 SR
Mating System SNAP-ON
Center Contact Plating GOLD 1.3 OVER NICKEL 1.3
Body Plating PASSIVATED
