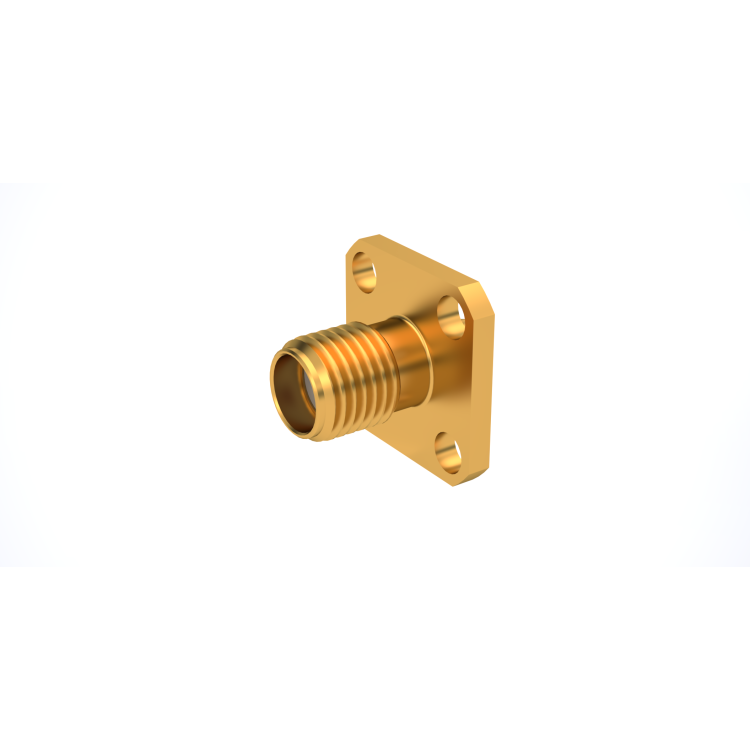

SMA / STRAIGHT SQUARE FLANGE JACK SOLDER TYPE CABLE .141

R124255003

Brand: RADIALL

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KS 2, RG 402

Cable Attachment: SOLDER TYPE

Cable Groups: .141''/50 SR

Mating System: SCREW-ON

Center Contact Plating: GOLD 1.3 OVER COPPER 2.5

Body Plating: GOLD 0.2 OVER NICKEL 2

OR
SMA / STRAIGHT SQUARE FLANGE JACK SOLDER TYPE CABLE .141

R124255003 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
