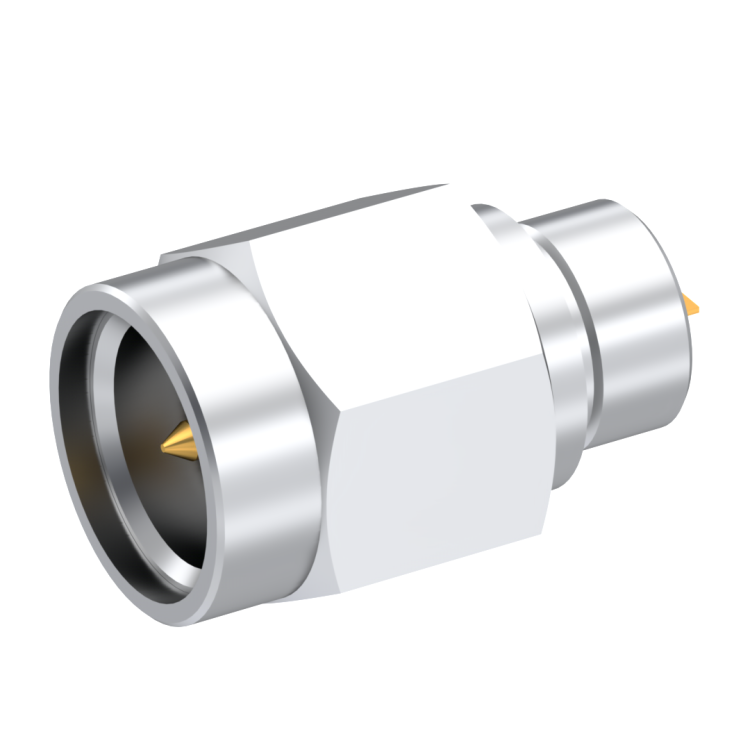

SMA / STRAIGHT PLUG RECEPTACLE MALE PASSIVATED CAPTIVE CONTACT

9139-9113-000

Brand: AEP

Product Type: Connectors

Interface I: SMA

Model: PANEL RECEPTACLE

Specific Feature: CAPTIVE CONTACT

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: KNURL MOUNT

Connector Type: PLUG

Gender 1: MALE

Mating System: SCREW-ON

Center Contact Termination: TAB

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: PASSIVATED

OR
SMA / STRAIGHT PLUG RECEPTACLE MALE PASSIVATED CAPTIVE CONTACT

9139-9113-000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
