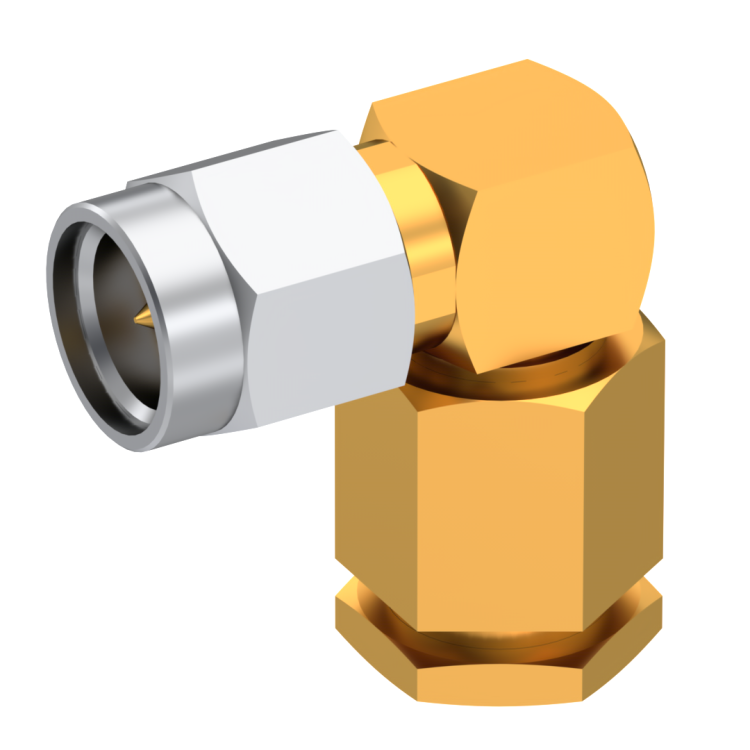

SMA / RIGHT ANGLE PLUG MALE CLAMP TYPE FOR 5/50 S GOLD CAPTIVE CONTACT

9243-1553-006 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
SMA / RIGHT ANGLE PLUG MALE CLAMP TYPE FOR 5/50 S GOLD CAPTIVE CONTACT

9243-1553-006

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Specific Feature CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry RIGHT ANGLE

Connector Type PLUG

Gender 1 MALE

Cable Standard RG 58|RG 141|M17/111|M17/155

Cable Attachment CLAMP TYPE

Cable Groups 5/50 S

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
