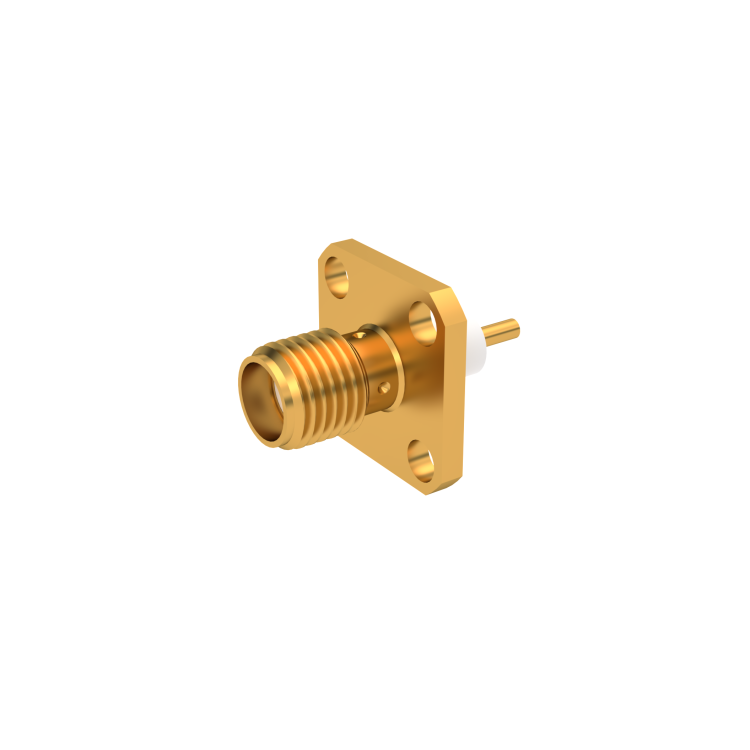

SMA / ADJUSTABLE SQUARE FLANGE JACK RECEPTACLE WITH CYLINDRICAL CONTACT

R124413025

Brand: RADIALL

Product Type: Connectors

Interface I: SMA

Model: PANEL RECEPTACLE

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: CYLINDRICAL

Center Contact Plating: GOLD 0.8 OVER NICKEL 2

Body Plating: GOLD 0.2 OVER NICKEL 2

OR
SMA / ADJUSTABLE SQUARE FLANGE JACK RECEPTACLE WITH CYLINDRICAL CONTACT

R124413025 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
