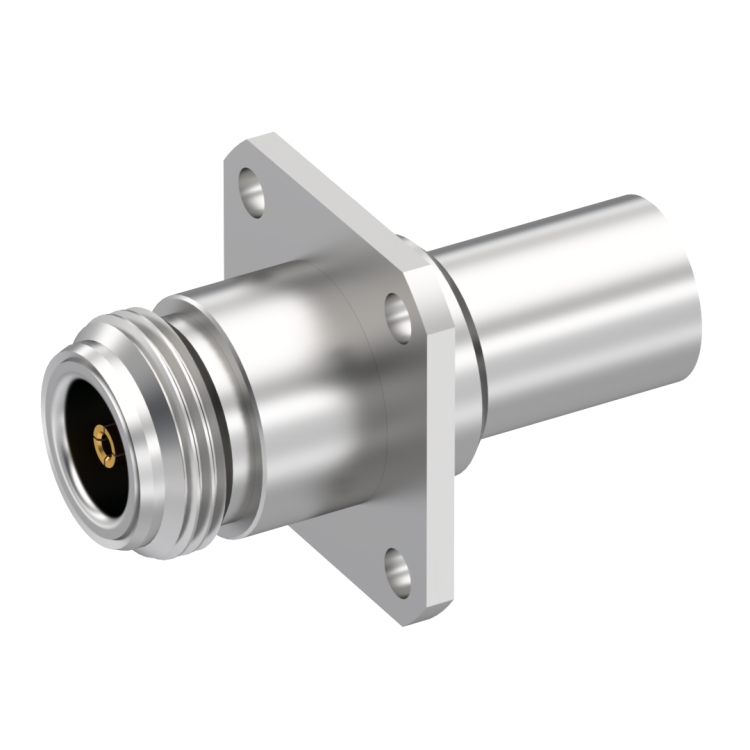

N / STRAIGHT SQUARE FLANGE JACK FULL CRIMP-TYPE - CABLE 10/50 S

R161286000

Brand: RADIALL

Product Type: Connectors

Interface I: N

Model: CABLE CONNECTOR

Max Frequency (GHz): 11

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KX 4, RG 165, RG 213

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 10/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: BBR

OR
N / STRAIGHT SQUARE FLANGE JACK FULL CRIMP-TYPE - CABLE 10/50 S

R161286000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Datasheets
3D.IGS
3D.STEP
