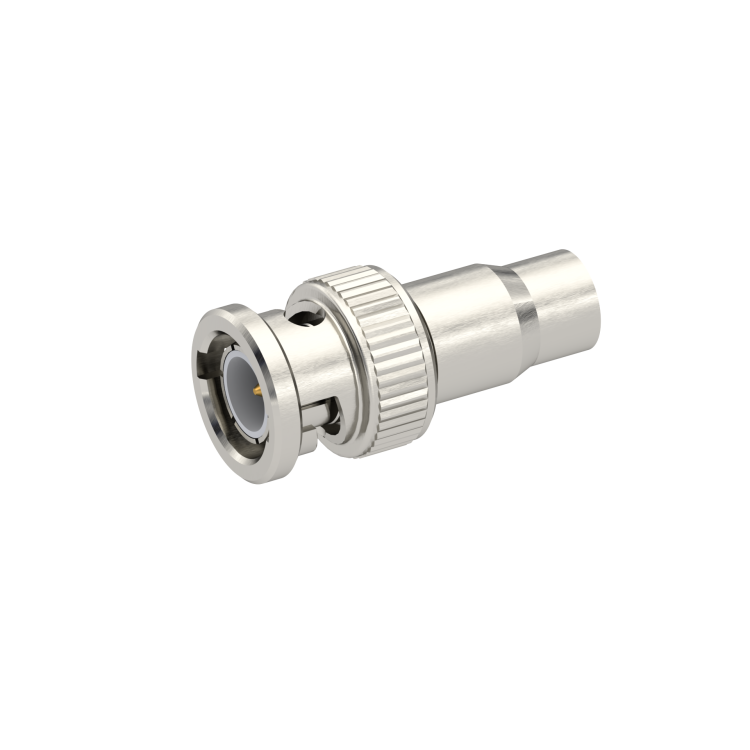

BNC / STRAIGHT PLUG CRIMP TYPE CABLE 7/75 S

R142086161

Brand: RADIALL

Product Type: Connectors

Interface I: BNC

Model: CABLE CONNECTOR

Max Frequency (GHz): 1.5

Impedance (Ohm): 75

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: VCB 100

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 7/75 S

Mating System: BAYONET

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL

OR
BNC / STRAIGHT PLUG CRIMP TYPE CABLE 7/75 S

R142086161 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
