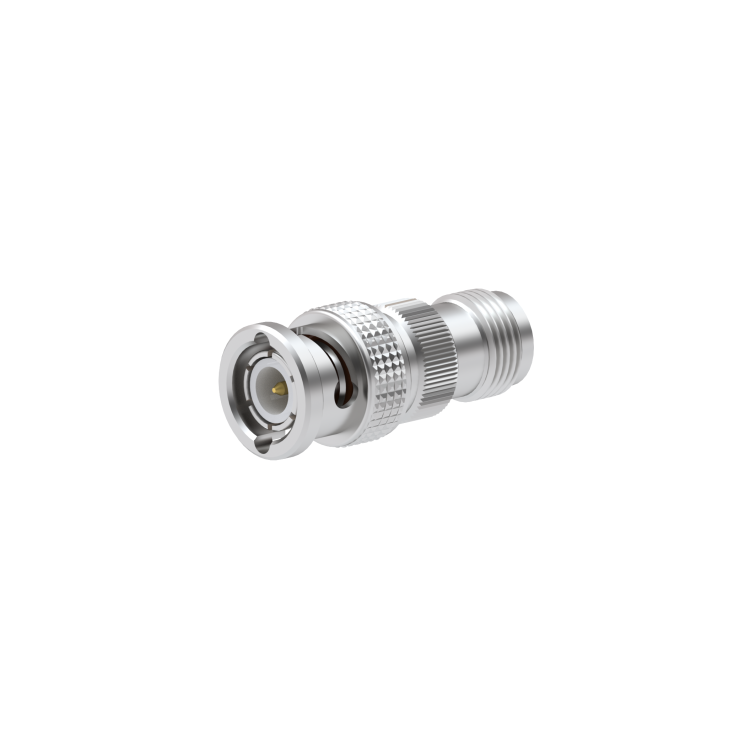

BNC MALE TNC FEMALE STRAIGHT ADAPTER

R191403000

Brand: RADIALL

Product Type: Adapters

Interface I: BNC

Interface II: TNC

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG/JACK

Gender 1: MALE

Gender 2: FEMALE

Mating System: BAYONET

Mating System 2: SCREW-ON

Center Contact Plating: GOLD 0.5 OVER NICKEL 2

Body Plating: NICKEL 2

OR
BNC MALE TNC FEMALE STRAIGHT ADAPTER

R191403000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
