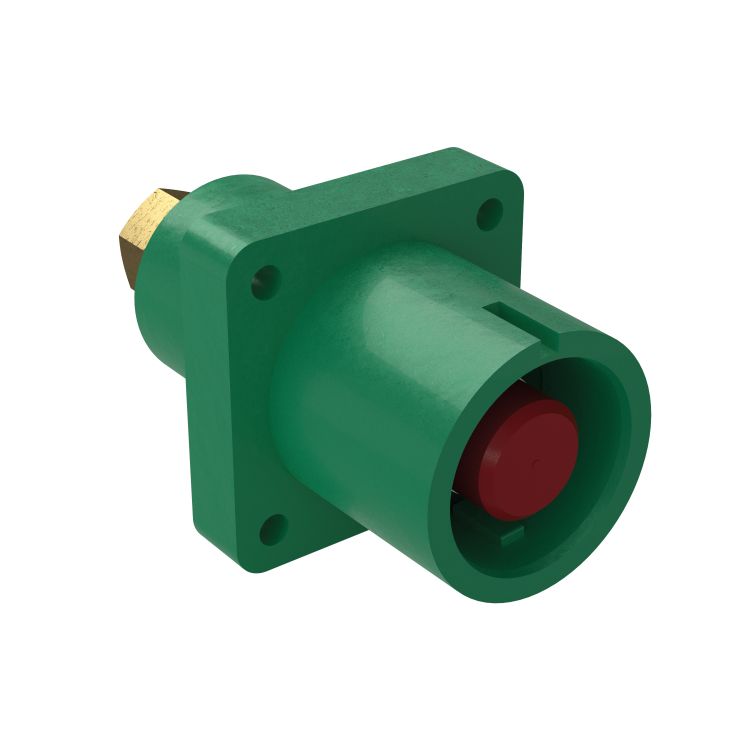

SPPC-PWL-PS-E-GN-M12-T4

VS390064 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
3D.STEP
SPPC-PWL-PS-E-GN-M12-T4

VS390064

Application Power supply

Series SPPC-PWL

Connector Type Single Pole Power Connectors

Number of Contacts 1

Drain Panel source

Contact Termination M12 Threaded post for conductor up to 120mm2

Voltage Rating 1000 V

Current Rating 400 A

Color Green - Earth

Certification UL

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500

Click here to check availability
