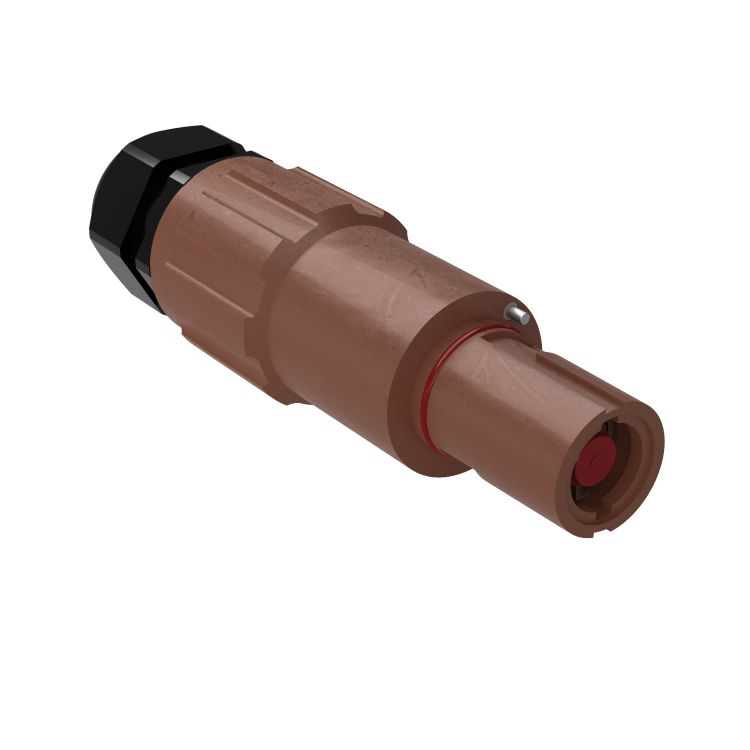

SPPC-PWL-LD-L1-BR-S-120-M

VS390091 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
3D.STEP
SPPC-PWL-LD-L1-BR-S-120-M

VS390091

Application Power supply

Series SPPC-PWL

Connector Type Single Pole Power Connectors

Number of Contacts 1

Drain Cable/Line drain

External Cable Diameter 19mm-28mm

Contact Termination Screws terminal for conductor up to 120mm2

Voltage Rating 1000 V

Current Rating 400 A

Color Brown - Phase L1

Certification UL

Sealing Protection IP66/67

Temperature Range -30°/+125°C

Mating Cycles 500
