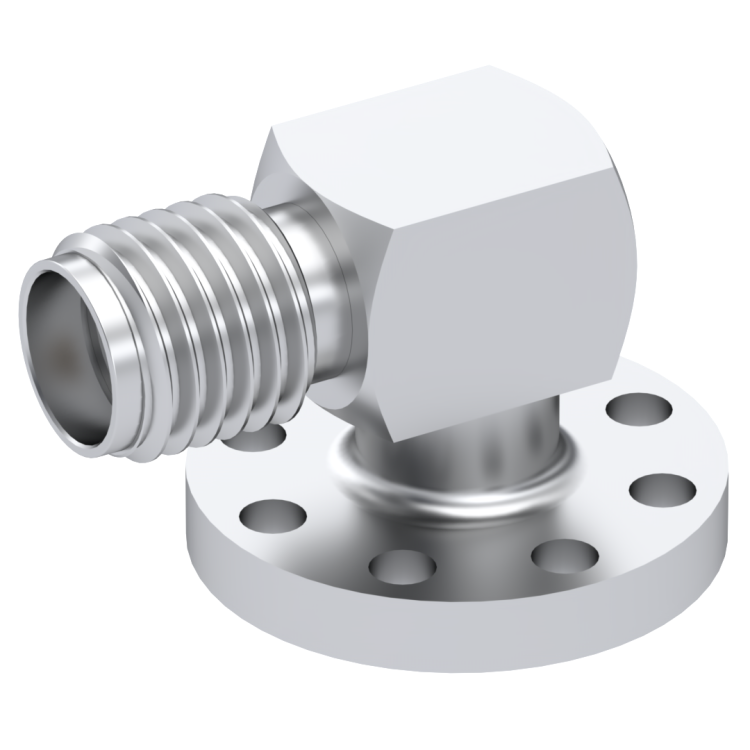

SMA / RIGHT ANGLE JACK RECEPTACLE FEMALE PASSIVATED NON-CAPTIVE REAR CONTACT|STANDARD FLANGE
9035-9513-002 - Veuillez contacter Radiall pour plus d'informations.
For REACH and RoHS status, click here for additional information.
9035-9513-002
Brand AEP
Product Type Connectors
Interface I SMA
Modèle PANEL RECEPTACLE
Specific Feature NON-CAPTIVE CONTACT
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry RIGHT ANGLE
Panel Mounting THREAD-IN
PCB Mounting SMT
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination STRIPLINE
Center Contact Plating GOLD PLATED PER MIL-G-45204
Body Plating PASSIVATED
