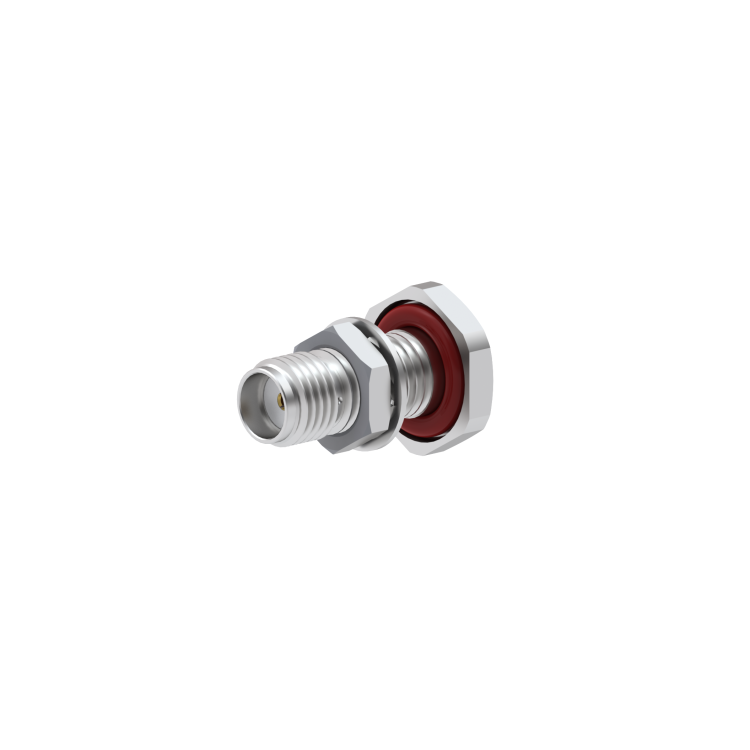

SMA FEMALE - MMCX FEMALE STRAIGHT BULKHEAD ADAPTER PANEL AND INTERNAL SEAL

R191399100

Brand: RADIALL

Type de Produit: Adapters

Interface I: MMCX

Model: non applicable

Interface II: SMA

Specific Feature: PANEL SEALED, WATERPROOF

Max Frequency (GHz): 6

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

PCB Mounting: non applicable

Connector Type: JACK/JACK

Gender 1: FEMALE

Gender 2: FEMALE

Cable Standard: non applicable

Cable Attachment: non applicable

Cable Groups: non applicable

Mating System: SCREW-ON

Mating System 2: SCREW-ON

Center Contact Termination: non applicable

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: PASSIVATED

OU
SMA FEMALE - MMCX FEMALE STRAIGHT BULKHEAD ADAPTER PANEL AND INTERNAL SEAL

R191399100 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Fiche technique
Fiche technique
3D.IGS
3D.STEP
