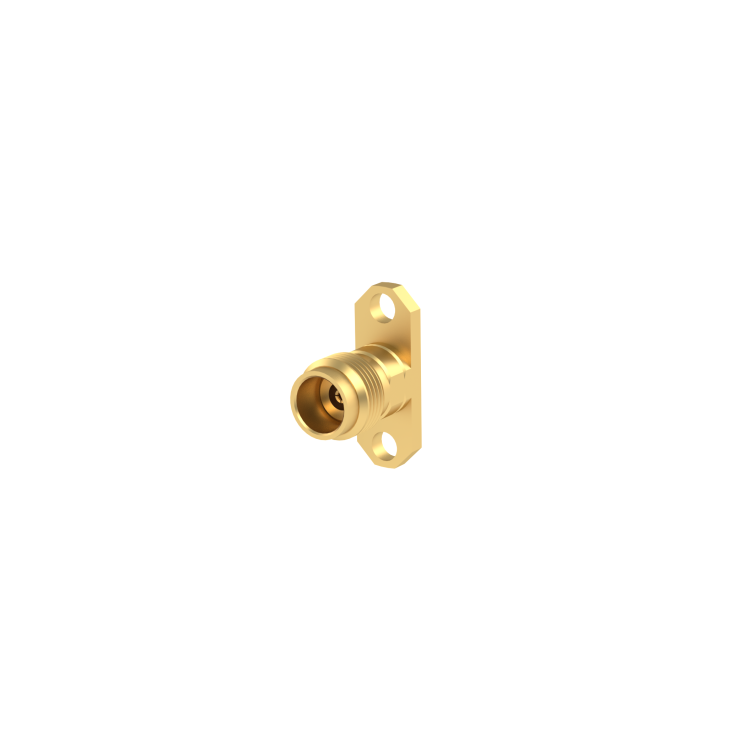

2.4 MM / UNIVERSAL 2 HOLE FLANGE JACK RECEPTACLE FOR PIN 0.3MM
R327465000 - Veuillez contacter Radiall pour plus d'informations.
For REACH and RoHS status, click here for additional information.
R327465000
Brand RADIALL
Product Type Connectors
Interface I 2.4 MM
Modèle PANEL RECEPTACLE
Specific Feature AUXILLIARY CONTACT, HERMETIC
Max Frequency (GHz) 50
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 2 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination AUXILLIARY CONTACT
Center Contact Plating GOLD OVER NICKEL
Body Plating GOLD OVER COPPER
