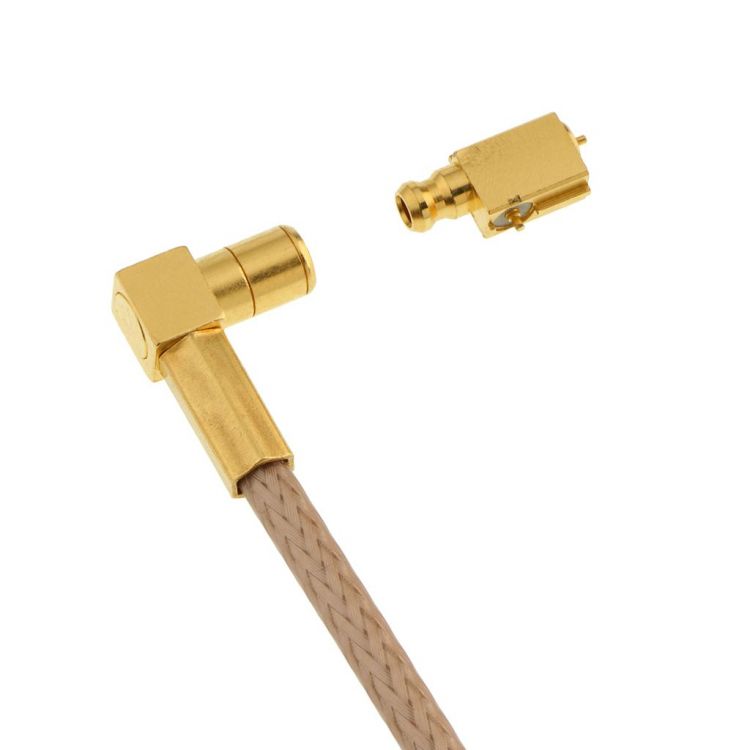

MOEBIUS subminiature connector for limited spaces or dense environments

MOEBIUS

View Products
Micro miniature snap-on connector, operating in the range DC-6 GHz
50 ohms / part series R199 006
Moebius was designed in the 2000's to replace MC-Card for wireless LAN remote antenna connection. thanks to its extremely high durability switching connector guaranteed for 25,000 mating cycles.

Resources

Document Download
Moebius Switching Connector Catalog
View All Documents

Performances

Features:

  • Impedance : 50Ω
  • Frequency range : DC ~ 6 GHz
  • Durability : 25 000 mating cycles
  • Power rating at 1 GHz : 40W in CW mode

Dimensions:

  • The outer diameter of the interface is approx 2.60mm
